Jamis Trail XR

No Image Available
This item is currently not available.

Details

QUALITY, VERSATILITY, AFFORDABILITY

The Trail XR is built for the rider looking for quality, versatility, and affordability in a bike that can handle city streets, rail trails, campus shortcuts, and suburban cul-de-sacs with comfort and confidence. Inspired by our Trail X mountain bikes, but tuned for everyday 'round-town regular riding, the XR is the perfect fat-tired solution for the buyer on a budget.

- Frame designed for all-around ride comfort. Not too aggressive, not too laid back.
- Dependable hi-tensile unicrown fork, with over-sized radiused blades
- Shimano Revoshift 35, 21-speed shifting
- Forged alloy crank
- Alloy linear pull brakes with full alloy 4-finger levers
- Jamis XC riser handlebar for a comfortable ride position
- Jamis alloy micro-adjust seat post
- Jamis ATB Sport saddle with protective front and rear guards

Geometry

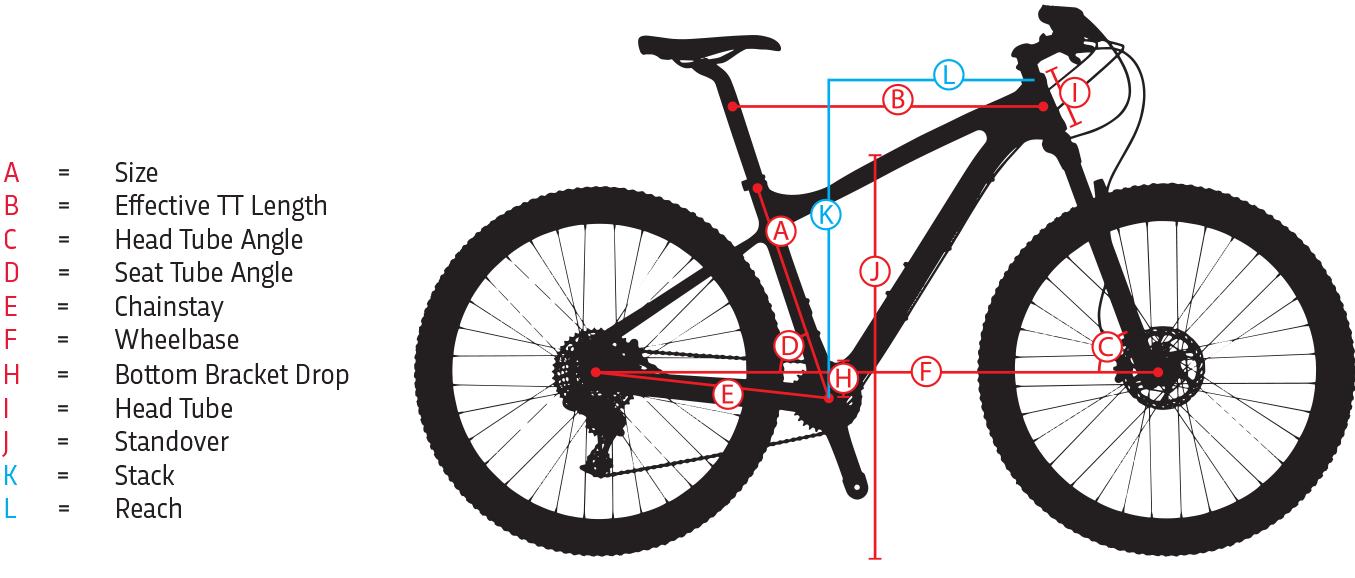

Geometry Chart:
SIZE TT EFFECTIVE
Inch / mm
HT ANGLEST ANGLECHAINSTAY
Inch / mm
WHEELBASE
Inch / mm
FORK RAKE
Inch / mm
BB HEIGHT
Inch / mm
HEADTUBE
Inch / mm
STANDOVER
Inch / mm
13″ 20.90 / 531 70.5° 74° 16.73 / 425 40.27 / 1023 1.77 / 45 11.89 / 302 4.13 / 105 27.05 / 687
15″ 21.42 / 544 70.5° 74° 16.73 / 425 40.83 / 1037 1.77 / 45 11.89 / 302 4.72 / 120 28.27 / 718
17″ 21.89 / 556 71° 73.5° 16.73 / 425 40.90 / 1039 1.77 / 45 11.89 / 302 4.92 / 125 29.29 / 744
19″ 22.52 / 572 71° 73.5° 16.73 / 425 41.57 / 1056 1.77 / 45 11.89 / 302 5.12 / 130 30.51 / 775
21″ 23.34 / 593 71.5° 73° 16.73 / 425 42.05 / 1068 1.77 / 45 11.89 / 302 6.49 / 165 32.12 / 816

Specs

Frame Hi-tensile steel tubes
Fork Unicrown, hi-tensile steel, with over-sized radiused blades
Wheels Alloy 26 x 1.50" 36H rims, heavy-duty ATB hubs with QR, 14G nickel-plated spokes
Tires CST MTB, 26 x 1.95"
Bottom Bracket Bolt type axle
Crankset Forged alloy crank, 42/34/24T, 170mm
Shifters Shimano Revoshift 35, 3×7-speed
Front Derailleur Shimano TZ30
Rear Derailleur Shimano TY300
Cassette/Freewheel 7-speed freewheel, 13-28T
Chain KMC Z51, 7-speed
Brakes Alloy linear pull type with full alloy 4-finger levers
Handlebars Jamis XC riser, 25.4 x 20mm rise x 620mm
Tape/Grips Kraton for Grip Shift
Stem Jamis Hi-Rise, Quill type – 60mm (12-14"), 80mm (15-18"), 100mm (19-21")
Headset Threaded
Seatpost Jamis alloy micro-adjust, 28.6 x 350mm (12-15") 400mm (17-21")
Saddle Jamis ATB Sport, SL cover, protective front and rear guards
Pedals MTB platform, hi-impact resin

* Subject to change without notice.
